EDGELIT
Product code: BLBP-560A15x4565E17
LED bar for double-sided lightboxes, 24V | 17W | 6500K | IP67

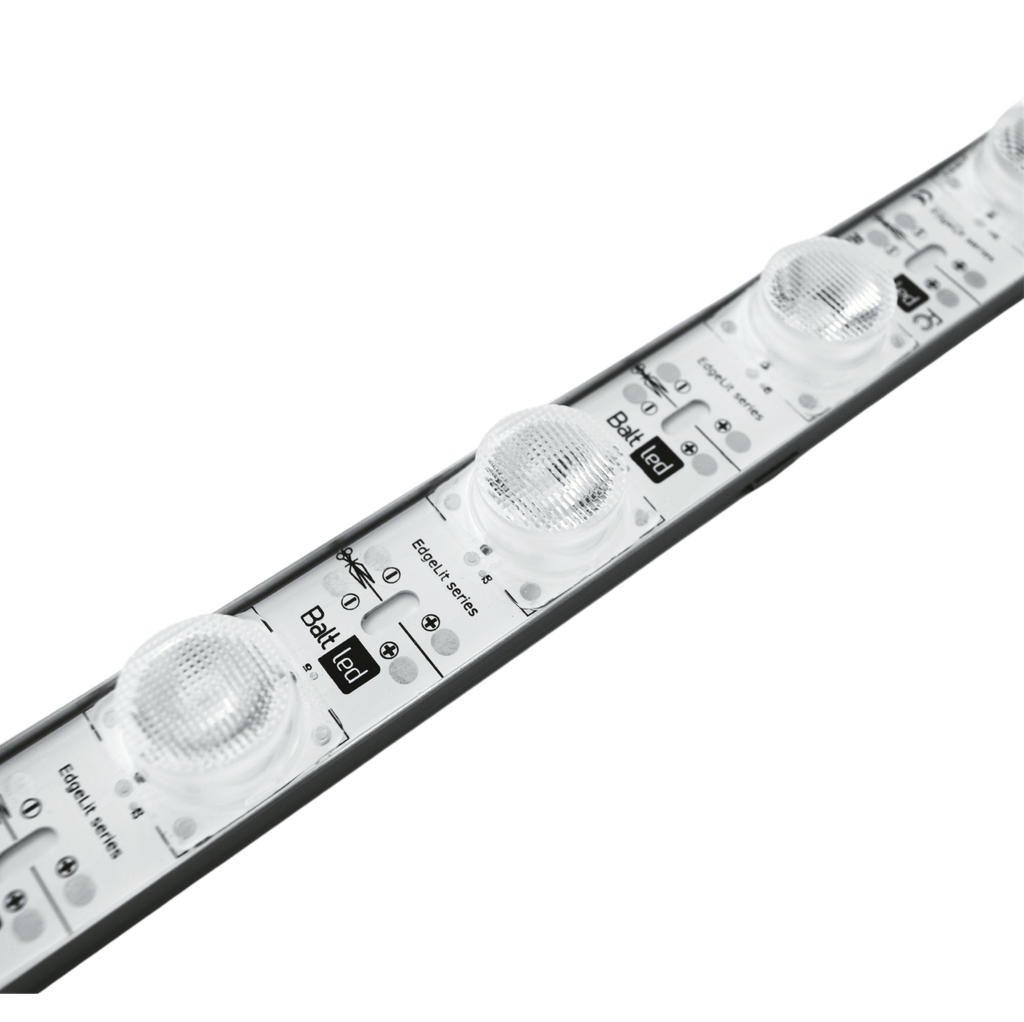

EdgeLit rigid bars are specially designed for double-sided lightboxes with depth from 100 to 250 mm and height up to 3000 mm. Depending on the model, each EdgeLit rigid bar has from 5 to 18 LEDs coupled with lenses and mounted on the aluminum bar. Thanks to that, it takes much less time to install bars than regular LED modules. It is a perfect solution to achieve homogeneous and powerful illuminance of the diffusive surface.
Double-sided lightboxes
Recommended depth: 100-250 mm
IP20 / IP67 protection class
Easy and fast installation
Long life-span of 50,000 h
5-years warranty
EdgeLit rigid bars are specially designed for double-sided lightboxes with depth from 100 to 250 mm and height up to 3000 mm. Depending on the model, each EdgeLit rigid bar has from 5 to 18 LEDs coupled with lenses and mounted on the aluminum bar. Thanks to that, it takes much less time to install bars than regular LED modules. It is a perfect solution to achieve homogeneous and powerful illuminance of the diffusive surface.
Double-sided lightboxes
Recommended depth: 100-250 mm
IP20 / IP67 protection class
Easy and fast installation
Long life-span of 50,000 h
5-years warranty
Specifications for EDGELIT
| Binning, SDCM | 3 |
| Certification | CE and RoHS compliant |
| Colour/CCT | 6500 K |
| CRI | >80 |
| IP Class | IP67 |
| Length, mm | 560 |
| Lifetime | L70 50000 h |
| Lumen output, lm | 1275 |
| Mounting options | U shape snap-in clicks |
| Operating temperature | -30 °C ~ +50 °C |
| Power, W | 17 |
| Recommended depth | 100 - 250 mm |
| Storage temperature | +5°C ~ +70 °C |
| Supply voltage, V | 12 DC |
| Lumen output range, lm | 500-3000 |
| Application | Double-sided light boxes, Stretch ceilings, Signage lighting control , Bus shelter displays |
| Warranty, years | 5 |
| Width, mm | 26, 28 |
