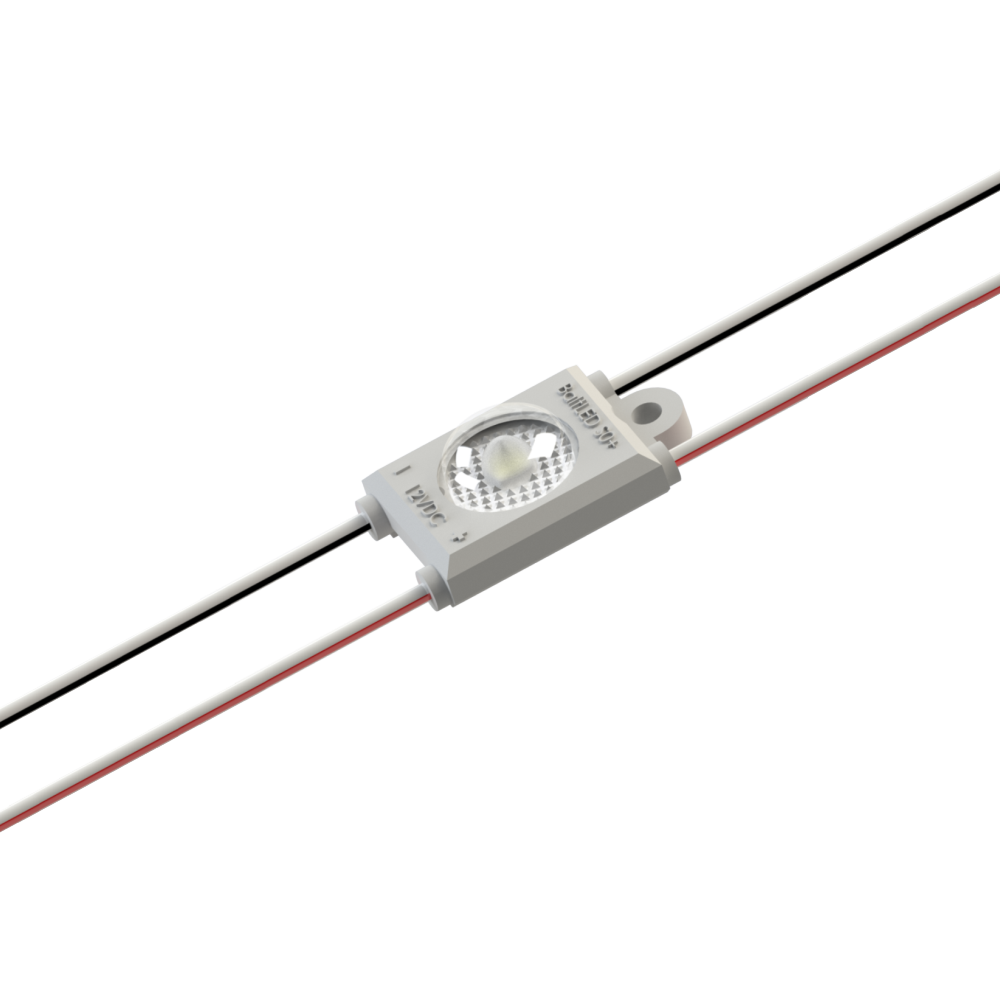

OPTO S0+
Product code: BMOP-SP-LE1A160865E05CC
LED module for letters and single-sided light boxes, 12V | 0.5W | 6500K | 160° | IP67 | 60 modules per chain | 5 year warranty | CC120
Crown OPTO S0+ is a perfect solution for uniform illumination of single-sided lightboxes and bigger channel letters with a depth ranging from 40 to 90 mm. Due to the new optics, we have used with this module, the center between the modules can go up to 17 cm. This gives you uniform bright illumination with less modules compared to standard solutions. For fixing modules in place, adhesive tape is used. To ensure the convenient use of the tape, we designed it with a finger lift edge liner for quick and easy removal of the protective layer. Crown OPTO S0+ comes with L80 50 000 h lifetime and 5 years (24/7) warranty.
Single-sided lightboxes and bigger channel letters
Recommended depth 40 – 90 mm
IP67 protection class
L80 50, 000 h lifetime
5-year 24/7 warranty
Easy tear finger-lift tape for faster mounting
Crown OPTO S0+ is a perfect solution for uniform illumination of single-sided lightboxes and bigger channel letters with a depth ranging from 40 to 90 mm. Due to the new optics, we have used with this module, the center between the modules can go up to 17 cm. This gives you uniform bright illumination with less modules compared to standard solutions. For fixing modules in place, adhesive tape is used. To ensure the convenient use of the tape, we designed it with a finger lift edge liner for quick and easy removal of the protective layer. Crown OPTO S0+ comes with L80 50 000 h lifetime and 5 years (24/7) warranty.
Single-sided lightboxes and bigger channel letters
Recommended depth 40 – 90 mm
IP67 protection class
L80 50, 000 h lifetime
5-year 24/7 warranty
Easy tear finger-lift tape for faster mounting
Specifications for OPTO S0+
| Binning, SDCM | 4 |
| CC distance, mm | 120 |
| Certification | CE, RoHS and UKCA compliant |
| Colour/CCT | 6500 K |
| IP Class | IP67 |
| Lifetime | L80 50000 h |
| Lumen output, lm | 63 |
| Operating temperature | -30 °C ~ +50 °C |
| Power, W | 0.5 |
| Recommended depth | 40 - 90 mm |
| Storage relative humidity, % max | 60 |
| Storage temperature | +5°C ~ +70 °C |
| Supply voltage, V | 12 DC |
| Lumen output range, lm | 10-100 |
| Application | Single-sided light boxes, Channel letters |
| Warranty, years | 5 |
