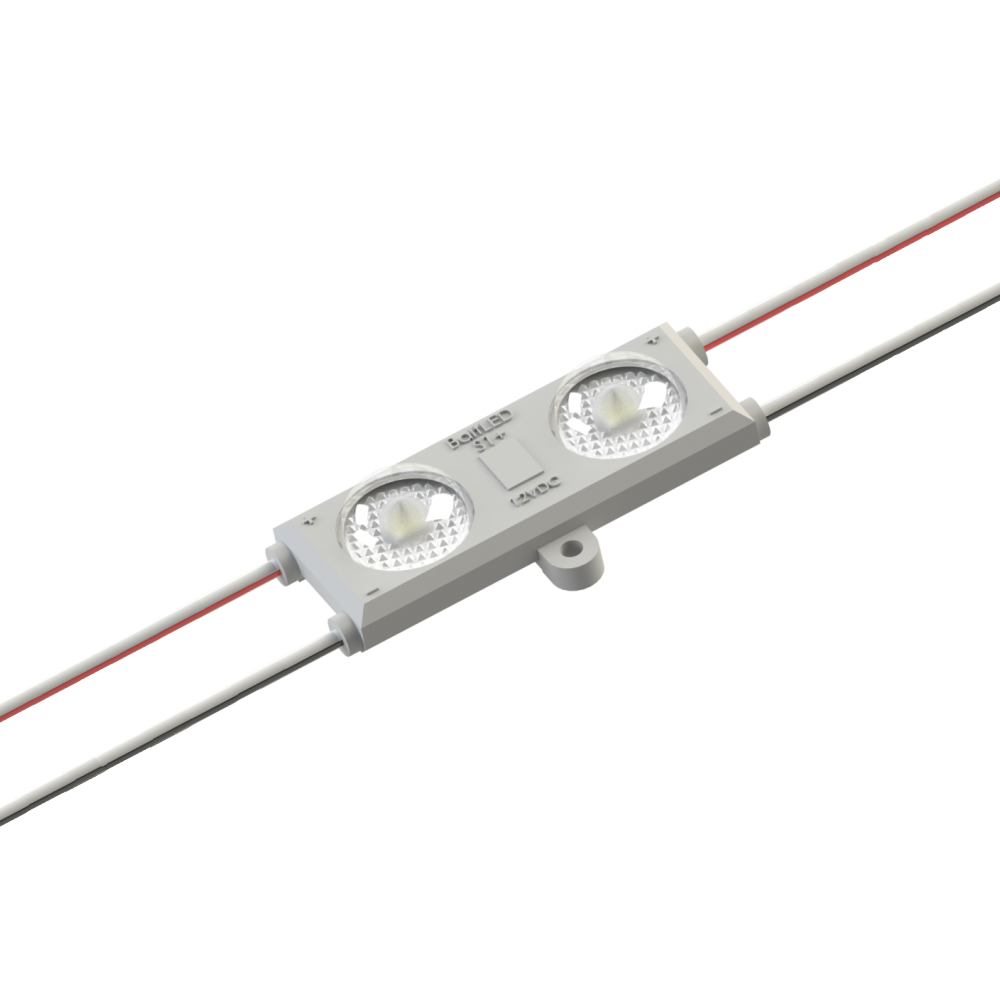

OPTO S1+
Product code: BMOP-SP-LE2A160RE09
LED module for letters and single-sided light boxes, 12V | 0,9W | RED | 160° | IP67 | 35 modules per chain | 5 year warranty
Crown OPTO S1+ is a perfect solution for uniform illumination of single-sided lightboxes and bigger channel letters with a depth ranging from 80 to 140 mm. Due to the new optics, we have used with this module, light is distributed more evenly inside the lightboxes or channel letters. As these modules have a better light distribution pattern and longer wires, they can be installed with a 250 mm step. To make the installation work easy and fast, these modules come with an adhesive tape containing a finger lift edge liner for convenient removal of the protective layer. Crown OPTO S1+ comes with L80 50 000 h lifetime and 5 years (24/7) warranty.
Single-sided lightboxes and bigger channel letters
Recommended depth 80 – 140 mm
IP67 protection class
L80 50, 000 h lifetime
5-year 24/7 warranty
Easy tear finger-lift tape for faster mounting
Crown OPTO S1+ is a perfect solution for uniform illumination of single-sided lightboxes and bigger channel letters with a depth ranging from 80 to 140 mm. Due to the new optics, we have used with this module, light is distributed more evenly inside the lightboxes or channel letters. As these modules have a better light distribution pattern and longer wires, they can be installed with a 250 mm step. To make the installation work easy and fast, these modules come with an adhesive tape containing a finger lift edge liner for convenient removal of the protective layer. Crown OPTO S1+ comes with L80 50 000 h lifetime and 5 years (24/7) warranty.
Single-sided lightboxes and bigger channel letters
Recommended depth 80 – 140 mm
IP67 protection class
L80 50, 000 h lifetime
5-year 24/7 warranty
Easy tear finger-lift tape for faster mounting
Specifications for OPTO S1+
| CC distance, mm | 250 |
| Certification | CE, RoHS and UKCA compliant |
| Colour/CCT | Red |
| IP Class | IP67 |
| Lifetime | L80 50000 h |
| Lumen output, lm | 34 |
| Operating temperature | -30 °C ~ +50 °C |
| Power, W | 1 |
| Recommended depth | 80 - 140 mm |
| Storage relative humidity, % max | 60 |
| Storage temperature | +5 °C ~ +70 °C |
| Supply voltage, V | 12 DC |
| Application | Single-sided light boxes, Channel letters |
| Warranty, years | 5 |
