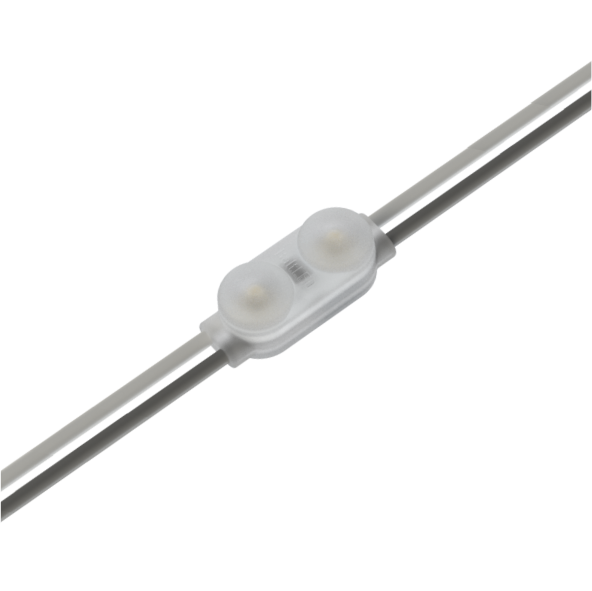

MINI
Product code: BMP-5M-O2UH160WW30CC
LED module for acrylic block letters, 12V | 0.3W |3000K | IP66 | Beam angle 160° | Center to center distance 42mm | 50 pcs per chain
Crown MINI is best for the uniform illumination of shallow depth narrow channel letters. These modules are designed to fit in backlit and halo-lit applications with depths as low as 20 mm and widths as narrow as 8 mm. Great illumination uniformity can be achieved with 85 mm / 42 mm distance between modules and flexible silicone insulation wires allowing easy installation. A 5-year warranty with L70 for 50,000 hours is applied.
Shallow depth narrow channel letters
Recommended depth 20 – 60 mm
Extremely small size
High CRI > 82
IP66 protection class
Made in Europe
5-year warranty
Crown MINI is best for the uniform illumination of shallow depth narrow channel letters. These modules are designed to fit in backlit and halo-lit applications with depths as low as 20 mm and widths as narrow as 8 mm. Great illumination uniformity can be achieved with 85 mm / 42 mm distance between modules and flexible silicone insulation wires allowing easy installation. A 5-year warranty with L70 for 50,000 hours is applied.
Shallow depth narrow channel letters
Recommended depth 20 – 60 mm
Extremely small size
High CRI > 82
IP66 protection class
Made in Europe
5-year warranty
Specifications for MINI
| Binning, SDCM | 3 |
| CC distance, mm | 42 |
| Certification | CE, RoHS and UKCA compliant |
| Colour/CCT | 3000 K |
| IP Class | IP66 |
| Lifetime | L70 50000 h |
| Lumen output, lm | 27 |
| Operating temperature | -30 °C ~ +50 °C |
| Power, W | 0.3 |
| Recommended depth | 20 - 60 mm |
| Storage relative humidity, % max | 60 |
| Storage temperature | +5°C ~ +70 °C |
| Supply voltage, V | 12 DC |
| Lumen output range, lm | 10-100 |
| Application | Acrylic block letters, Channel letters |
| Warranty, years | 5 |
