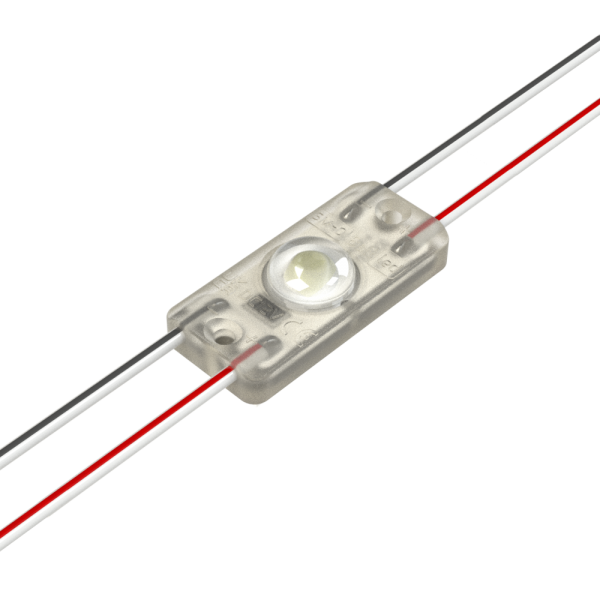

CHALLENGER 0
Product code: BMP-M0-O1UH160CW020-24V
LED module for letters and single-sided light boxes,24V | 0.2W | 6500K | IP67
Overview
Combining our best know-how and top-of-the-line LEDs, the new, extremely competitive Challenger series is here to challenge the market with unmatched quality at an unbeatable price. It is perfect solution to illuminate from shallow to middle-depth letters and single-sided lightboxes. Because of their sleek design, these modules can easily illuminate smaller letters ranging in depth from 30 to 160 mm. Challenger modules have a lifetime of L80 70 000 h and a 5-year warranty.
Forge a new path for your signage needs with Challengers, where unparalleled quality meets affordability head-on.
Applications
Feature and Benefits
Binning, SDCM
CC distance, mm
Certification
Colour/CCT
IP Class
Lifetime
Lumen output, lm
Operating temperature
Power, W
Recommended depth
Storage relative humidity, % max
Storage temperature
Supply voltage, V
Lumen output range, lm
Application
Application
Warranty, years
Overview
Combining our best know-how and top-of-the-line LEDs, the new, extremely competitive Challenger series is here to challenge the market with unmatched quality at an unbeatable price. It is perfect solution to illuminate from shallow to middle-depth letters and single-sided lightboxes. Because of their sleek design, these modules can easily illuminate smaller letters ranging in depth from 30 to 160 mm. Challenger modules have a lifetime of L80 70 000 h and a 5-year warranty.
Forge a new path for your signage needs with Challengers, where unparalleled quality meets affordability head-on.
Applications
Feature and Benefits
Binning, SDCM
CC distance, mm
Certification
Colour/CCT
IP Class
Lifetime
Lumen output, lm
Operating temperature
Power, W
Recommended depth
Storage relative humidity, % max
Storage temperature
Supply voltage, V
Lumen output range, lm
Application
Application
Warranty, years
Specifications for CHALLENGER 0
| Binning, SDCM | 3 |
| CC distance, mm | 80 |
| Certification | CE, RoHS and UKCA compliant |
| Colour/CCT | 6500 K |
| IP Class | IP67 |
| Lifetime | L80 70000 h |
| Lumen output, lm | 28 |
| Operating temperature | -20 °C ~ +50 °C |
| Power, W | 0.2 |
| Recommended depth | 30 - 160 mm |
| Storage relative humidity, % max | 60 |
| Storage temperature | -30 °C ~ +60 °C |
| Supply voltage, V | 24 VDC |
| Lumen output range, lm | 10-100 |
| Application | Channel letters, Single-sided light boxes |
| Warranty, years | 5 |
