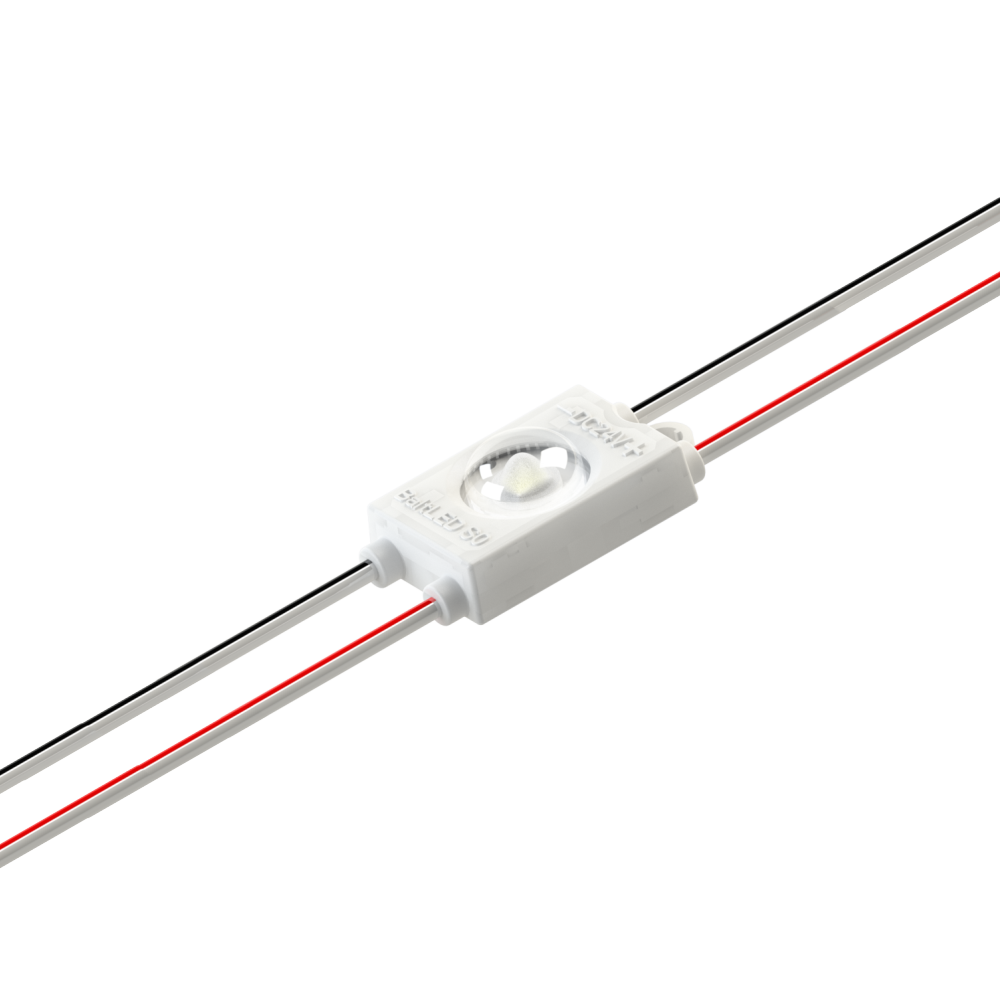

STELLAR S0
Product code: BMP-S0-O1UH160BC
LED module for letters and single-sided light boxes, 12V | 0.35W | BLUE | IP67
Crown OPTO STELLAR series modules are designed to illuminate low-depth letters and lightboxes. S0 module application is ranging from 40 to 80 mm in depth. These modules come with L70 100 000 h lifetime for 6500K and L70 50,000 h for other colours, granting 5 years warranty. Crown OPTO STELLAR – a great option for projects when economical, although a quality solution is needed.
Channel letter signs and single-sided lightboxes
Recommended depth 40 – 80 mm
Compact design
IP67 protection class
White, red, green, and blue colors are available
5-year warranty
Crown OPTO STELLAR series modules are designed to illuminate low-depth letters and lightboxes. S0 module application is ranging from 40 to 80 mm in depth. These modules come with L70 100 000 h lifetime for 6500K and L70 50,000 h for other colours, granting 5 years warranty. Crown OPTO STELLAR – a great option for projects when economical, although a quality solution is needed.
Channel letter signs and single-sided lightboxes
Recommended depth 40 – 80 mm
Compact design
IP67 protection class
White, red, green, and blue colors are available
5-year warranty
Specifications for STELLAR S0
| Binning, SDCM | 3 |
| CC distance, mm | 130 |
| Certification | CE, UKCA, RoHS and UL compliant |
| Colour/CCT | Blue |
| IP Class | IP67 |
| Lifetime | L70 50000 h |
| Lumen output, lm | 6 |
| Operating temperature | -30 °C ~ +60 °C |
| Power, W | 0.35 |
| Recommended depth | 30 - 80 mm |
| Storage relative humidity, % max | 60 |
| Storage temperature | +5 °C ~ +50 °C |
| Supply voltage, V | 12 DC |
| Lumen output range, lm | 0-10 |
| Application | Single-sided light boxes, Channel letters |
| Warranty, years | 5 |
