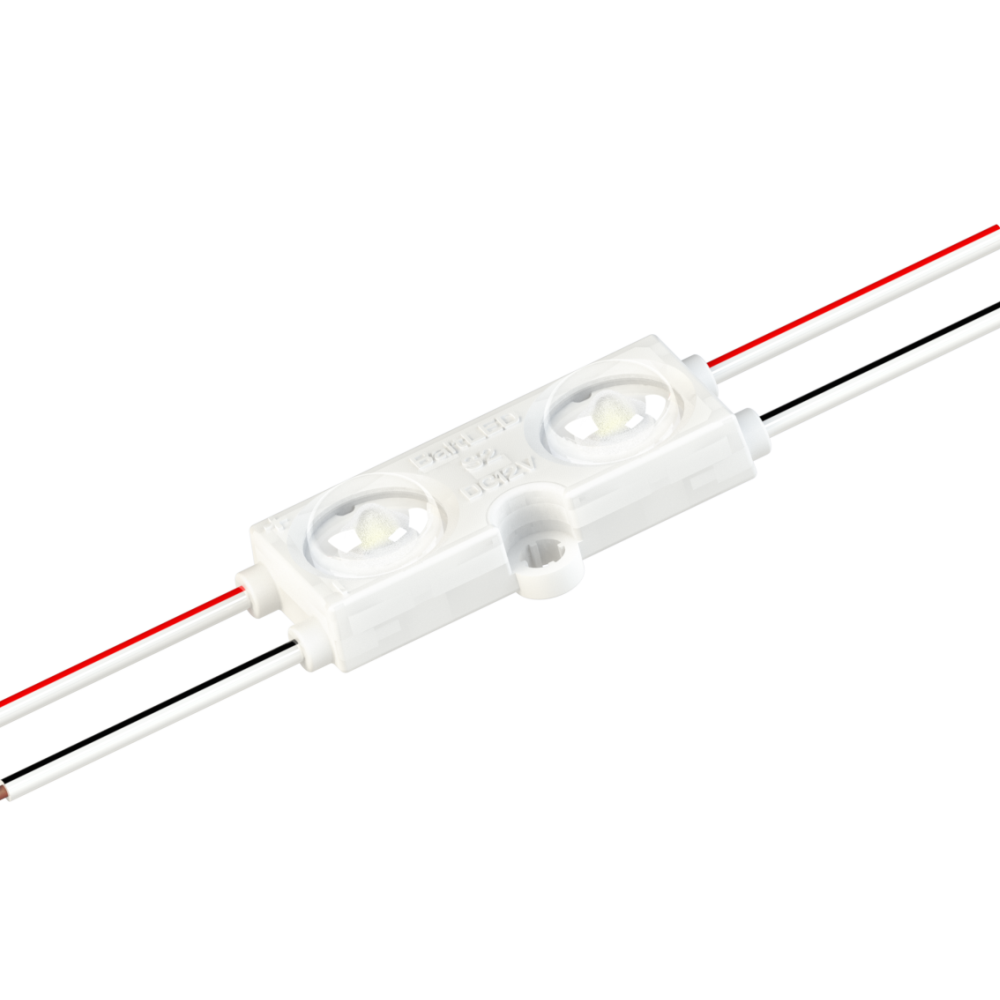

STELLAR S2
Product code: BMP-S2-O2UH160CW700
LED module for letters and single-sided light boxes, 12V | 1.0W | 6500K | IP67
Crown OPTO STELLAR series modules are designed to illuminate middle-depth letters and lightboxes. S2 module application is ranging from 70 to 140 mm in depth. These modules come with L70 100 000 h lifetime for 6500K and L70 50,000 h for other colours, granting 5 years warranty. Crown OPTO STELLAR – a great option for projects when economical, although a quality solution is needed.
Channel letters signs and single-sided lightboxes
Recommended depth 70 – 140 mm
Compact design
IP67 protection class
5-year warranty
Crown OPTO STELLAR series modules are designed to illuminate middle-depth letters and lightboxes. S2 module application is ranging from 70 to 140 mm in depth. These modules come with L70 100 000 h lifetime for 6500K and L70 50,000 h for other colours, granting 5 years warranty. Crown OPTO STELLAR – a great option for projects when economical, although a quality solution is needed.
Channel letters signs and single-sided lightboxes
Recommended depth 70 – 140 mm
Compact design
IP67 protection class
5-year warranty
Specifications for STELLAR S2
| Binning, SDCM | 3 |
| CC distance, mm | 240 |
| Certification | CE, UKCA, RoHS and UL compliant |
| Colour/CCT | 6500 K |
| IP Class | IP67 |
| Lifetime | L70 100000 h |
| Lumen output, lm | 114 |
| Operating temperature | -30 °C ~ +60 °C |
| Power, W | 1 |
| Recommended depth | 70 -140 mm |
| Storage relative humidity, % max | 60 |
| Storage temperature | -5 °C ~ +50 °C |
| Supply voltage, V | 12 DC |
| Application | Single-sided light boxes, Channel letters |
| Warranty, years | 5 |
