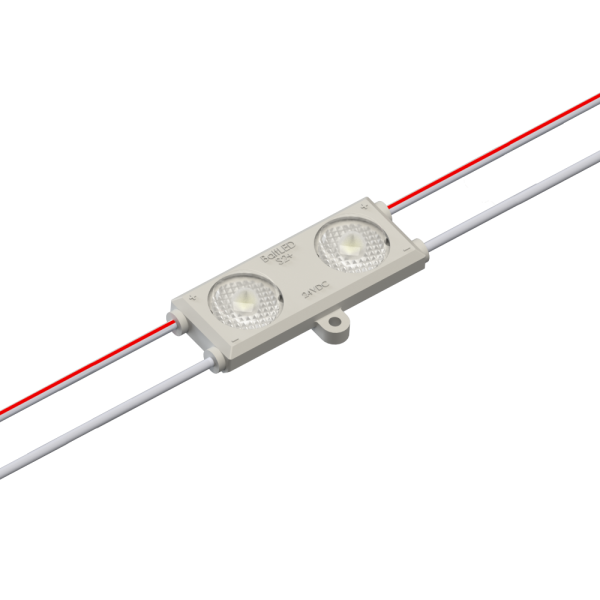

OPTO S2+
Product code: BMP-S2P.1-740E1-24V
LED module for letters and single-sided light boxes, 24V | 4000K | 1.0W | 160° | IP67 | 45 modules per chain | 5 year warranty
Crown OPTO S2+ is a new solution for uniform illumination of medium to bigger size channel letters with depth ranging from 80 to 150 mm. Light in the applications distributed more evenly, due to the new optics, we have used in this series design. Because of that, LED modules can have longer wires and be installed with a 300 m step. 24V gives the ability to increase the number of LED modules in the chain, without drop of the effectiveness and power. To make the installation work easy and fast, these modules come with the adhesive containing a finger lift edge liner for convenient removal of the protective layer. Crown OPTO S2+ modules have 10 years (24/7)* warranty with L80 for 50 000 hours.
Medium to bigger size channel letters
Recommended depth 80 – 150 mm
Efficiency up to 160 lm/W
300 mm distance between centers of modules
IP67 protection class
L80 50, 000 h lifetime
10-year 24/7 warranty*
Easy tear finger-lift tape for faster installation
Crown OPTO S2+ is a new solution for uniform illumination of medium to bigger size channel letters with depth ranging from 80 to 150 mm. Light in the applications distributed more evenly, due to the new optics, we have used in this series design. Because of that, LED modules can have longer wires and be installed with a 300 m step. 24V gives the ability to increase the number of LED modules in the chain, without drop of the effectiveness and power. To make the installation work easy and fast, these modules come with the adhesive containing a finger lift edge liner for convenient removal of the protective layer. Crown OPTO S2+ modules have 10 years (24/7)* warranty with L80 for 50 000 hours.
Medium to bigger size channel letters
Recommended depth 80 – 150 mm
Efficiency up to 160 lm/W
300 mm distance between centers of modules
IP67 protection class
L80 50, 000 h lifetime
10-year 24/7 warranty*
Easy tear finger-lift tape for faster installation
Specifications for OPTO S2+
| Binning, SDCM | 3 |
| CC distance, mm | 300 |
| Certification | CE, RoHS and UKCA compliant |
| Colour/CCT | 4000 K |
| IP Class | IP67 |
| Lifetime | L80 50000 h |
| Lumen output, lm | 160 |
| Operating temperature | -20 °C ~ +50 °C |
| Power, W | 1.0 |
| Recommended depth | 80 - 150 mm |
| Storage relative humidity, % max | 60 |
| Storage temperature | -30 °C ~ +60 °C |
| Supply voltage, V | 24 DC |
| Application | Channel letters |
| Warranty, years | 5 |
