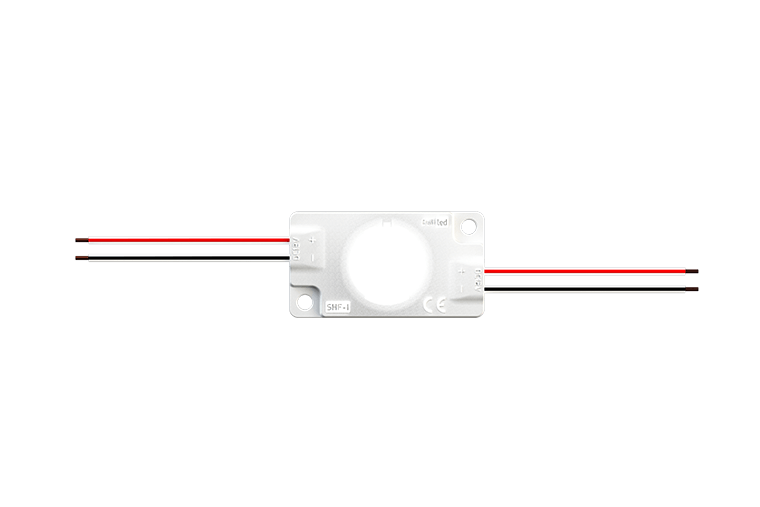

Crown Opto SHF-1
Product code: BMP-SHF1-840E0.5
LED module for single-sided light boxes, 12V | 0.5W | 4000K | 176° | IP66 | 40 modules per chain
With Crown OPTO SHF-1 we introduce a better solution for illumination of slim light boxes. Designed for depths ranging from 50 to 150 mm. This solution also allows you to reduce installation time and save up on module quantity. As they have a better light distribution pattern, you need less modules for 1m2 compared to competitor solutions. Powered by top quality brand LED for the best performance these modules show extreme endurance at harsh working conditions (IP66) and have 5 year warranty with L80 at 60,000 hours.
Small depth light boxes
Recommended depth 50-150 mm
Red, green and blue colours available
Top quality LED
Significaly wide beam angle
Outstanding pitching
Pure 3SDCM
Mirroring wire connection for better module placing
High waterproof class
Aluminum PCB for the best thermal management
Two side holes for module locking
Slim design
Thermal tape for easy heat dissipation
Finger-lift for faster installation
With Crown OPTO SHF-1 we introduce a better solution for illumination of slim light boxes. Designed for depths ranging from 50 to 150 mm. This solution also allows you to reduce installation time and save up on module quantity. As they have a better light distribution pattern, you need less modules for 1m2 compared to competitor solutions. Powered by top quality brand LED for the best performance these modules show extreme endurance at harsh working conditions (IP66) and have 5 year warranty with L80 at 60,000 hours.
Small depth light boxes
Recommended depth 50-150 mm
Red, green and blue colours available
Top quality LED
Significaly wide beam angle
Outstanding pitching
Pure 3SDCM
Mirroring wire connection for better module placing
High waterproof class
Aluminum PCB for the best thermal management
Two side holes for module locking
Slim design
Thermal tape for easy heat dissipation
Finger-lift for faster installation
Specifications for Crown Opto SHF-1
| Binning, SDCM | 3 |
| CC distance, mm | 250 |
| Certification | CE, RoHS and UKCA compliant |
| Colour/CCT | 4000 K |
| IP Class | IP66 |
| Lifetime | L90 B10 50000 h |
| Lumen output, lm | 72 |
| Operating temperature | -20 °C ~ +50 °C |
| Power, W | 0.5 |
| Recommended depth | 50-150 |
| Storage relative humidity, % max | 60 |
| Storage temperature | -30 °C ~ +60 °C |
| Supply voltage, V | 12 VDC |
| Lumen output range, lm | 10-100 |
| Application | Single-sided light boxes |
| Warranty, years | 5 |
