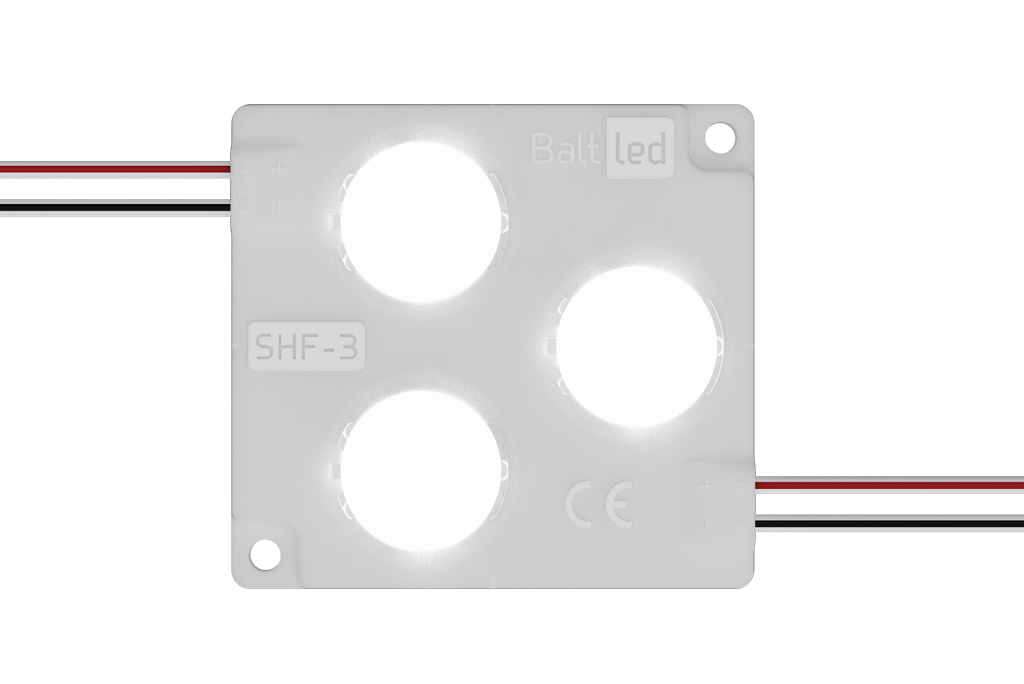

Crown Opto SHF-3
Product code: BMP-SHF3-870E3.6-24V
LED module for single-sided light boxes, 24V | 3.5W | 6500K | 176° | IP66 | 30 modules per chain
With Crown OPTO SHF-3 we introduce a better solution for the illumination of large light boxes. Designed for depths ranging from 150 to 400 mm. This solution also allows you to reduce installation time and save up on module quantity. As they have a better light distribution pattern, you need less modules for 1 square meter compared to competitor solutions. Powered by top-quality brand LED for the best performance these modules show extreme endurance at harsh working conditions (IP66) and have 5-year warranty with L80 at 60,000 hours.
Large-depth light boxes
Recommended depth 150 - 400 mm
Top quality LED
Significantly wide beam angle
Outstanding pitching
Pure 3SDCM
Mirroring wire connection for better module placing
High waterproof class
Aluminum PCB for the best thermal management
Two side holes for module locking
Slim design
Thermal tape for easy heat dissipation
Finger lift for faster installation
With Crown OPTO SHF-3 we introduce a better solution for the illumination of large light boxes. Designed for depths ranging from 150 to 400 mm. This solution also allows you to reduce installation time and save up on module quantity. As they have a better light distribution pattern, you need less modules for 1 square meter compared to competitor solutions. Powered by top-quality brand LED for the best performance these modules show extreme endurance at harsh working conditions (IP66) and have 5-year warranty with L80 at 60,000 hours.
Large-depth light boxes
Recommended depth 150 - 400 mm
Top quality LED
Significantly wide beam angle
Outstanding pitching
Pure 3SDCM
Mirroring wire connection for better module placing
High waterproof class
Aluminum PCB for the best thermal management
Two side holes for module locking
Slim design
Thermal tape for easy heat dissipation
Finger lift for faster installation
Specifications for Crown Opto SHF-3
| Binning, SDCM | 3 |
| CC distance, mm | 350 |
| Certification | CE, RoHS and UKCA compliant |
| Colour/CCT | 6500 K |
| Lifetime | L80B10 60 000 h |
| Lumen output, lm | 419 |
| Operating temperature | -20 °C ~ +50 °C |
| Power, W | 3.6 |
| Recommended depth | 150-400 |
| Storage relative humidity, % max | 60 |
| Storage temperature | -30 °C ~ +60 °C |
| Supply voltage, V | 24 DC |
| Lumen output range, lm | 200-500 |
| Application | Single-sided light boxes |
| Warranty, years | 5 |
