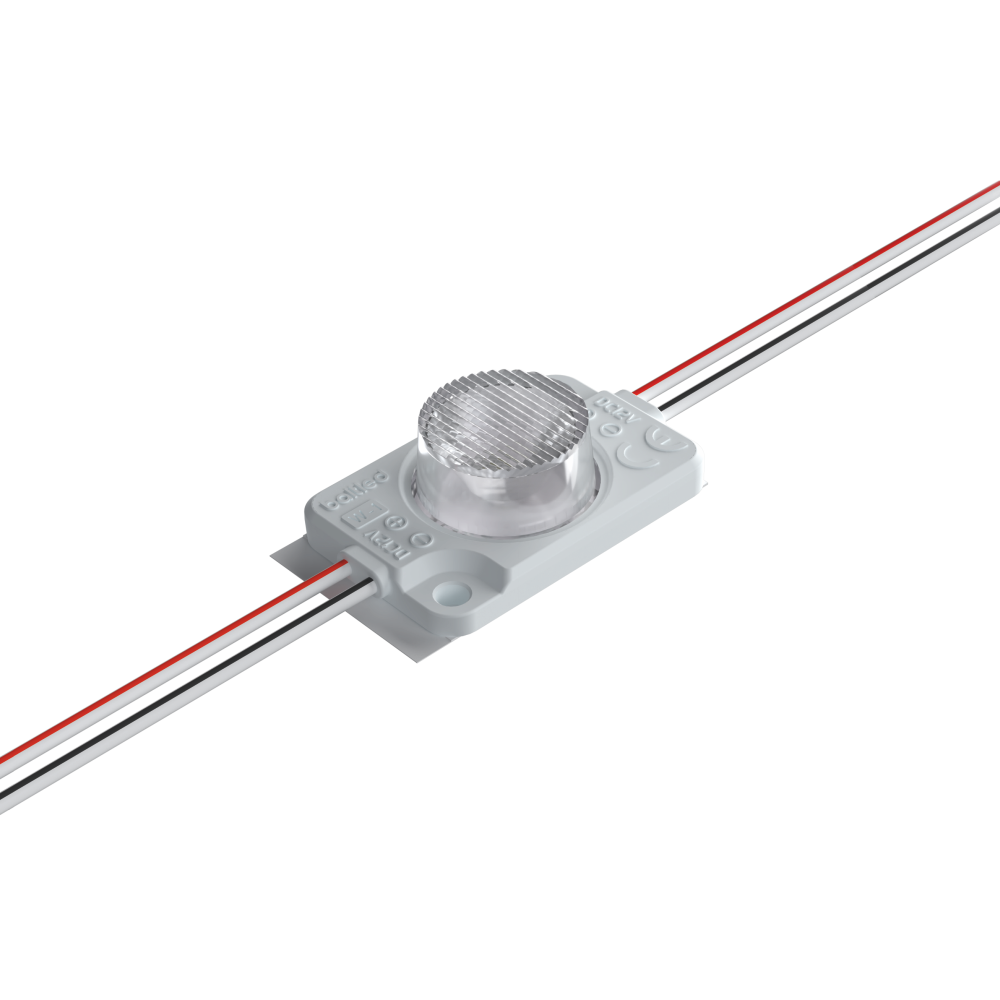

DUO W1
Product code: BMP-W1-DS830E1.4
LED module for double-sided lightboxes, 12V | 1.4W | 3000K | IP66
Crown DUO W1 - a perfect solution for illumination of shallow and medium depth (80-160 mm) double-sided lightboxes. These modules ensure uniform and bright illumination on different materials, like acrylic glass or textile of up to 1.5-meter height LED boxes. Made from quality components, Crown DUO W1 modules show extreme endurance at harsh working conditions (IP66) and have a 5-year warranty with L80 for 50,000 hours.
Double-sided lightboxes with depth from 80 to 160 mm
Maximum height of lightbox 1 500 mm
Bus shelters, billboards
5-year warranty
Integrated CC controller
IP66 protection class
Special optimized elliptical lens 18x50
CRI 80
12 V solution
Crown DUO W1 - a perfect solution for illumination of shallow and medium depth (80-160 mm) double-sided lightboxes. These modules ensure uniform and bright illumination on different materials, like acrylic glass or textile of up to 1.5-meter height LED boxes. Made from quality components, Crown DUO W1 modules show extreme endurance at harsh working conditions (IP66) and have a 5-year warranty with L80 for 50,000 hours.
Double-sided lightboxes with depth from 80 to 160 mm
Maximum height of lightbox 1 500 mm
Bus shelters, billboards
5-year warranty
Integrated CC controller
IP66 protection class
Special optimized elliptical lens 18x50
CRI 80
12 V solution
Specifications for DUO W1
| Binning, SDCM | 3 |
| CC distance, mm | 150 |
| Certification | CE, UKCA, RoHS and UL compliant |
| Colour/CCT | 3000 K |
| CRI | >80 |
| IP Class | IP66 |
| Lifetime | L80 50000 h |
| Lumen output, lm | 118 |
| Operating temperature | -20 °C ~ +50 °C |
| Power, W | 1.4 |
| Recommended depth | 80 - 160 mm |
| Storage relative humidity, % max | 60 |
| Storage temperature | -30 °C ~ +60 °C |
| Supply voltage, V | 12 DC |
| Application | Double-sided light boxes |
| Warranty, years | 5 |
