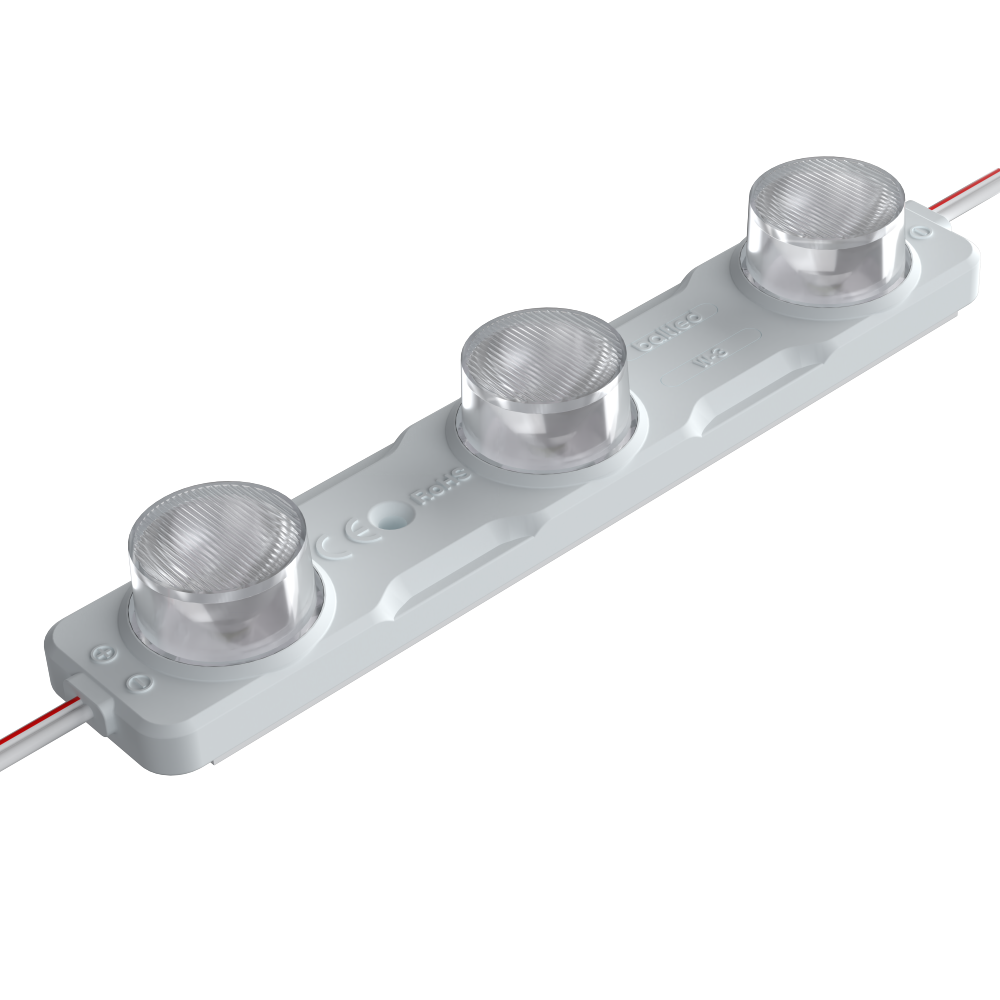

DUO W3
Product code: BMP-W3-DS865E3.6
LED module for double-sided lightboxes, 24V | 3.6W | 6500K | IP66
Crown DUO W3 is best for the illumination of shallow and medium depth (140-250mm) double-sided lightboxes. Equipped with advanced optic lenses these modules ensure uniform and bright illumination on different materials, like acrylic glass or textile of up to 2.5-meter height LED boxes. Thanks to the 24V system, more modules can be connected into one chain reducing voltage drops on long chains. Thus, giving availability to reduce electrical connections.
Street furniture applications
T8 replacement
Outdoor conditions
Recommended depth 140 – 250 mm
5-year warranty
Integrated CC controller
IP66 protection class
Special optimised elliptical lens 15×45
CRI 80
24 V solution
Crown DUO W3 is best for the illumination of shallow and medium depth (140-250mm) double-sided lightboxes. Equipped with advanced optic lenses these modules ensure uniform and bright illumination on different materials, like acrylic glass or textile of up to 2.5-meter height LED boxes. Thanks to the 24V system, more modules can be connected into one chain reducing voltage drops on long chains. Thus, giving availability to reduce electrical connections.
Street furniture applications
T8 replacement
Outdoor conditions
Recommended depth 140 – 250 mm
5-year warranty
Integrated CC controller
IP66 protection class
Special optimised elliptical lens 15×45
CRI 80
24 V solution
Specifications for DUO W3
| Binning, SDCM | 5 |
| CC distance, mm | 330 |
| Certification | CE, UKCA, RoHS and UL compliant |
| Colour/CCT | 6500 K |
| CRI | >80 |
| IP Class | IP66 |
| Lifetime | L80 50000 h |
| Lumen output, lm | 300 |
| Operating temperature | -20 °C ~ +50 °C |
| Power, W | 3.6 |
| Recommended depth | 140 - 250 mm |
| Storage relative humidity, % max | 60 |
| Storage temperature | -30 °C ~ +60 °C |
| Supply voltage, V | 24 DC |
| Lumen output range, lm | 200-500 |
| Application | Double-sided light boxes |
| Warranty, years | 5 |
