$ KaguLux SE
Product code: BPAP-SE-6060A90840I20
LED panel, 20W | Beam angle 90° | 4000 K | 169 lm/W | IP40 | 7 year warranty | 595x595x32 mm

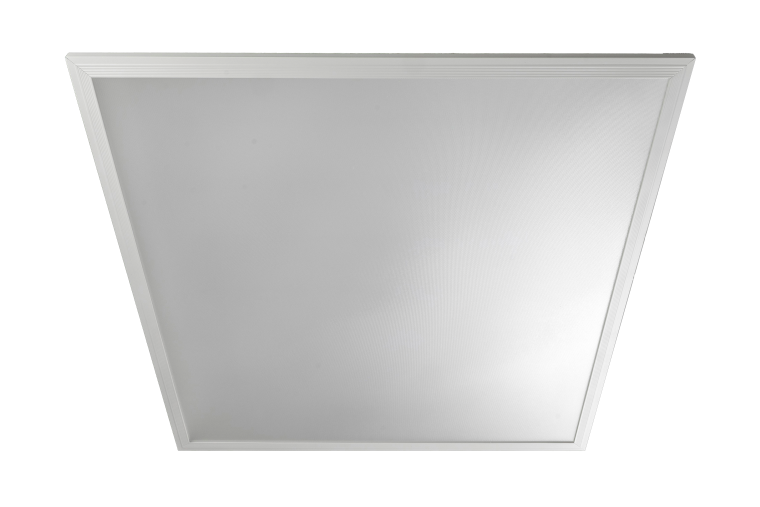

KaguLux SE – a square slim design backlit panel for commercial lighting and indoor use in low and middle height T-grid ceiling applications. With this panel, we enable considerably high efficacy going up to 169lm/W resulting in a significant reduction of energy consumption.
Shopping malls
Hotel halls
Conference rooms
Offices
Corridors
Schools
Hospitals
Efficacy up to 169 lm/W
5 years warranty
KaguLux SE – a square slim design backlit panel for commercial lighting and indoor use in low and middle height T-grid ceiling applications. With this panel, we enable considerably high efficacy going up to 169lm/W resulting in a significant reduction of energy consumption.
Shopping malls
Hotel halls
Conference rooms
Offices
Corridors
Schools
Hospitals
Efficacy up to 169 lm/W
5 years warranty
Specifications for $ KaguLux SE
| Body material | Aluminium |
| Certification | CE and RoHS compliant |
| Colour/CCT | 4000 K |
| CRI | >80 |
| Efficacy, lm/W | 169 |
| IP Class | IP40 |
| Lifetime | L80 100000 h |
| Lumen output, lm | 3370 |
| Mounting options | Recessed |
| Operating temperature | -20 °C ~ +50 °C |
| Optic type | Diamond, 90° |
| Power factor | >0.9 |
| Power, W | 20 |
| Recommended height | 2.2 - 4 m |
| Storage temperature | -5 °C ~ +50 °C |
| Supply voltage, V | 210-230V; 50-60 Hz |
| Application | Offices & administration |
| Warranty, years | 7 |
| Weight, g | 1960 |
| Control | No control |
| Dimensions, mm | 595 x 595 x 32 |
