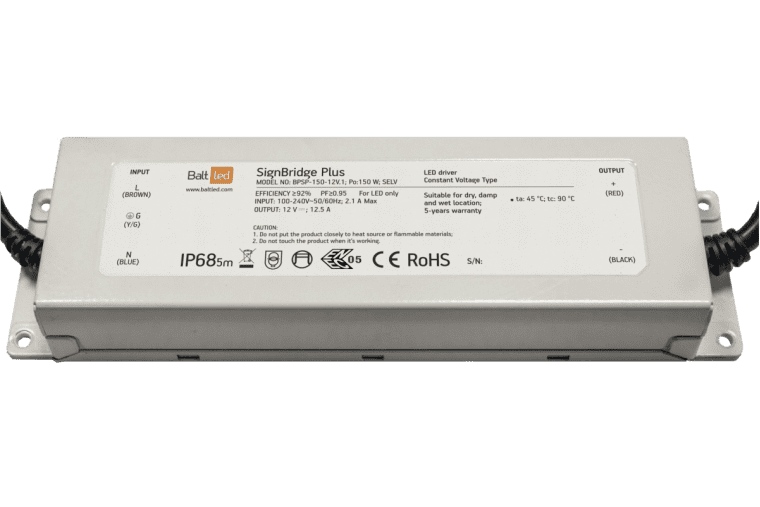

SIGNBRIDGE PLUS OUTDOOR
Product code: BPSP-150-12V.1
Constant voltage LED driver, 12V | 150W | IP68
BPSP-150-12V.1 is a 150 W constant voltage LED driver operating from 200~240 VAC. Thanks to the high efficiency of up to 92 % with a fanless design, this LED driver can operate for -40 C ~ +45 C case temperature under free air convection. The design of metal housing and IP68 ingress protection level allows BPSP-150-12V.1 to fit both indoor and outdoor applications, to provide the optimal flexibility for the LED lighting system.
• LED signage
• Metal housing design with functional ground
• Built-in active PFC function
• IP68 rating for indoor or outdoor installations
• Typical lifetime ≥50,000 hours
• 5 years warranty
Conformity & standards
EMC Emission:
• compliance with EN55015
EMC Immunity:
• EN55015
• EN61547
• EN61000-3-2
• EN61000-3-3
• CB
• ENEC
• CE LVD:
▪ IEC/EN61347
▪ IEC/EN61347-2-13
▪ UL8750
▪ UL1310
BPSP-150-12V.1 is a 150 W constant voltage LED driver operating from 200~240 VAC. Thanks to the high efficiency of up to 92 % with a fanless design, this LED driver can operate for -40 C ~ +45 C case temperature under free air convection. The design of metal housing and IP68 ingress protection level allows BPSP-150-12V.1 to fit both indoor and outdoor applications, to provide the optimal flexibility for the LED lighting system.
• LED signage
• Metal housing design with functional ground
• Built-in active PFC function
• IP68 rating for indoor or outdoor installations
• Typical lifetime ≥50,000 hours
• 5 years warranty
Conformity & standards
EMC Emission:
• compliance with EN55015
EMC Immunity:
• EN55015
• EN61547
• EN61000-3-2
• EN61000-3-3
• CB
• ENEC
• CE LVD:
▪ IEC/EN61347
▪ IEC/EN61347-2-13
▪ UL8750
▪ UL1310
Specifications for SIGNBRIDGE PLUS OUTDOOR
| Certification | CE, UKCA, ENEC and RoHS compliant |
| Cold start, MS | 3000 |
| Height, mm | 34 |
| IP Class | IP68 |
| Length, mm | 202 |
| Max input AC current, A | 2.1 |
| Max inrush current, A | 70 |
| Operating temperature | -40 °C ~ +45 °C |
| Output current, A | 12.5 |
| Output power, W | 150 |
| Output voltage, VDC | 12 |
| Over current protection | Yes |
| Power factor | 0.95 |
| Storage relative humidity, % max | 95 |
| Storage temperature | -40 ℃ ~ +80 ℃ |
| Supply voltage, V | 200 – 240 AC |
| Application | Signage lighting control |
| Warranty, years | 5 |
| Weight, g | 916 |
| Width, mm | 66 |
| Efficiency, % | 92 |
| Over temperature protection | Yes |
| Over voltage protection | Yes |
| Short circuit protection | Yes |
