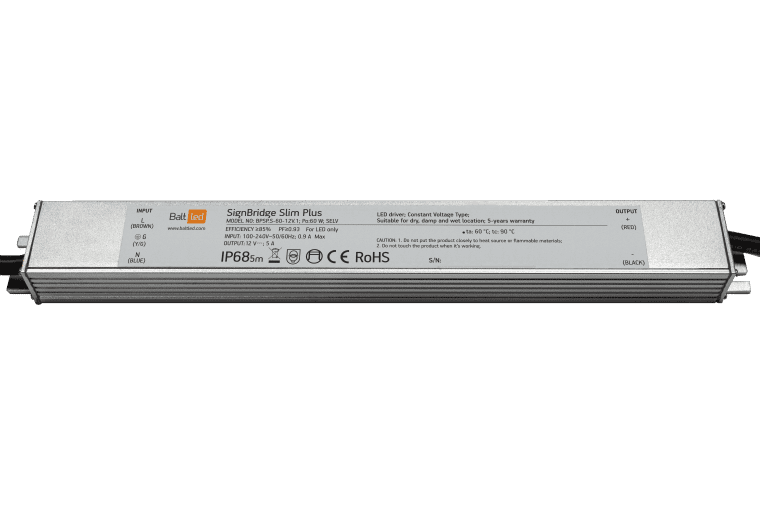

SIGNBRIDGE PLUS SLIM
Product code: BPSP.S-60-12V.1
Constant voltage LED driver, 12V | 60W | IP68
BPSP.S-60-12V.1 is a 60 W constant voltage LED driver operating from 100~240 VAC. Thanks to the high efficiency of up to 88 % with a fanless design, this LED driver can operate for -40 C ~ +50 C case temperature under free air convection. The design of metal housing and IP68 ingress protection level allows BPSP.S-60-12V.1 to fit both indoor and outdoor applications, to provide the optimal flexibility for the LED lighting system.
• LED signage
• Metal housing design with functional ground
• Built-in active PFC function
• IP68 rating for indoor or outdoor installations
• Typical lifetime ≥50,000 hours
• 5 years warranty
Conformity & standards
EMC Emission:
• compliance with EN55015
EMC Immunity:
• EN55015
• EN61547
• EN61000-3-2
• EN61000-3-3
• CB
• CE LVD:
▪ IEC/EN61347
▪ IEC/EN61347-2-13
▪ UL8750
▪ UL1310
BPSP.S-60-12V.1 is a 60 W constant voltage LED driver operating from 100~240 VAC. Thanks to the high efficiency of up to 88 % with a fanless design, this LED driver can operate for -40 C ~ +50 C case temperature under free air convection. The design of metal housing and IP68 ingress protection level allows BPSP.S-60-12V.1 to fit both indoor and outdoor applications, to provide the optimal flexibility for the LED lighting system.
• LED signage
• Metal housing design with functional ground
• Built-in active PFC function
• IP68 rating for indoor or outdoor installations
• Typical lifetime ≥50,000 hours
• 5 years warranty
Conformity & standards
EMC Emission:
• compliance with EN55015
EMC Immunity:
• EN55015
• EN61547
• EN61000-3-2
• EN61000-3-3
• CB
• CE LVD:
▪ IEC/EN61347
▪ IEC/EN61347-2-13
▪ UL8750
▪ UL1310
Specifications for SIGNBRIDGE PLUS SLIM
| Certification | CE, RoHS and UKCA compliant |
| Cold start, MS | 3000 |
| Height, mm | 21.8 |
| IP Class | IP68 |
| Length, mm | 264 |
| Max input AC current, A | 0.9 |
| Max inrush current, A | 60 |
| Operating temperature | -40 °C ~ +50 °C |
| Output current, A | 5 |
| Output power, W | 60 |
| Output voltage, VDC | 12 |
| Over current protection | Yes |
| Power factor | 0.95 |
| Storage relative humidity, % max | 95 |
| Storage temperature | -40 ℃ ~ +80 ℃ |
| Supply voltage, V | 100 - 240 AC |
| Application | Signage lighting control |
| Warranty, years | 5 |
| Weight, g | 360 |
| Width, mm | 33 |
| Efficiency, % | 85 |
| Over temperature protection | Yes |
| Over voltage protection | Yes |
| Short circuit protection | Yes |
