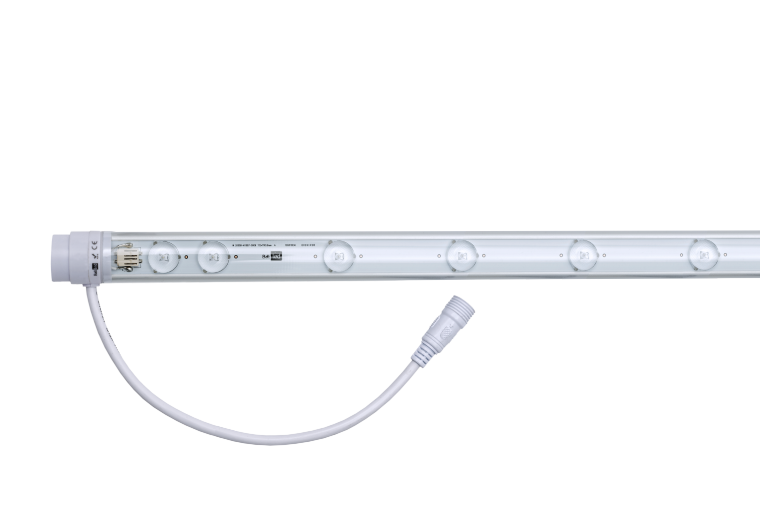

Retrofit tube
Product code: BTBP-T8C-240A320865E40-TSP
Clear Retrofit tube for street furniture applications, 220V | 40W | 6500K | IP67
With the LED Retrofit tube we introduce a convenient step ahead solution to upgrade existing fluorescent tubes for city lights, bus shelters, and similar. Our double-sided tubes vary in length from 0.6 to 2.4 meters and have two optional covers: clear and milky. It also comes with three connection options: G13 socket, two sides plug, or double plug. Product versatility, great efficacy of up to 148 lm/W, IP67 protection class, and 5-year warranty make it easy to choose this upgrade.
Street furniture applications
T8 replacement
Outdoor conditions
Recommended depth 140 – 400 mm
Efficacy up to 148 lm/W
Uniform illumination
Optional connection: G13 socket | two sides plug | double plug
Premium quality
IP67 protection class
5-year warranty
With the LED Retrofit tube we introduce a convenient step ahead solution to upgrade existing fluorescent tubes for city lights, bus shelters, and similar. Our double-sided tubes vary in length from 0.6 to 2.4 meters and have two optional covers: clear and milky. It also comes with three connection options: G13 socket, two sides plug, or double plug. Product versatility, great efficacy of up to 148 lm/W, IP67 protection class, and 5-year warranty make it easy to choose this upgrade.
Street furniture applications
T8 replacement
Outdoor conditions
Recommended depth 140 – 400 mm
Efficacy up to 148 lm/W
Uniform illumination
Optional connection: G13 socket | two sides plug | double plug
Premium quality
IP67 protection class
5-year warranty
Specifications for Retrofit tube
| Certification | CE and RoHS compliant |
| Colour/CCT | 6500 K |
| Connection type | Two sides plug |
| CRI | >80 |
| IP Class | IP67 |
| Length, mm | 2400 |
| Lifetime | L70 50000 h |
| Lumen output, lm | 5920 |
| Operating temperature | -20 °C ~ +40 °C |
| Optic type | Clear, 2 x 160° | 2 x 180° |
| Power, W | 40 |
| Recommended depth | 140 - 400 mm |
| Diameter, mm | 27 |
| Storage relative humidity, % max | 60 |
| Storage temperature | -40 °C ~ +80 °C |
| Supply voltage, V | 220 AC |
| Lumen output range, lm | 3000-6000 |
| Application | Street & outdoor lighting, Bus shelter displays, Street sign displays |
| Warranty, years | 5 |
