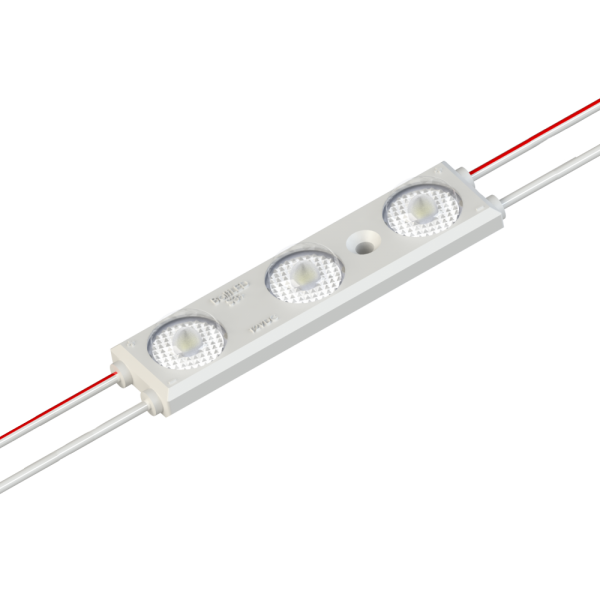

CROWN OPTO S3+
Product code: BMOP-SP-LE3A160865E1.5
LED module for letters and single-sided light boxes, 12V | 1.45W | 6500K | 160° | IP67 | 35 modules per chain | 5 year warranty
Crown OPTO S3+ modules are designed for the illumination of single-sided lightboxes and bigger channel letters with a depth ranging from 120 to 200 mm. These modules can be installed with a 350 mm step. To make the installation work easy and fast, they come with the adhesive containing a finger lift edge liner for convenient removal of the protective layer. Crown OPTO S3+ modules have 5 years (24/7) warranty with L80 for 50 000 hours.
Single-sided lightboxes and bigger channel letters
Recommended depth 120 – 200 mm
Efficiency up to 124 lm/W
350 mm distance between centers of modules
IP67 protection class
L80 50, 000 h lifetime
5-year 24/7 warranty
Easy tear finger-lift tape for faster installation
Crown OPTO S3+ modules are designed for the illumination of single-sided lightboxes and bigger channel letters with a depth ranging from 120 to 200 mm. These modules can be installed with a 350 mm step. To make the installation work easy and fast, they come with the adhesive containing a finger lift edge liner for convenient removal of the protective layer. Crown OPTO S3+ modules have 5 years (24/7) warranty with L80 for 50 000 hours.
Single-sided lightboxes and bigger channel letters
Recommended depth 120 – 200 mm
Efficiency up to 124 lm/W
350 mm distance between centers of modules
IP67 protection class
L80 50, 000 h lifetime
5-year 24/7 warranty
Easy tear finger-lift tape for faster installation
Specifications for CROWN OPTO S3+
| Binning, SDCM | 4 |
| CC distance, mm | 350 |
| Certification | CE, RoHS and UKCA compliant |
| Colour/CCT | 6500 K |
| IP Class | IP67 |
| Lifetime | L80 50000 h |
| Lumen output, lm | 180 |
| Operating temperature | -30 °C ~ +50 °C |
| Power, W | 1.45 |
| Recommended depth | 120 -200 mm |
| Storage relative humidity, % max | 60 |
| Storage temperature | +5°C ~ +70 °C |
| Supply voltage, V | 12 DC |
| Application | Channel letters, Single-sided light boxes |
| Warranty, years | 5 |
