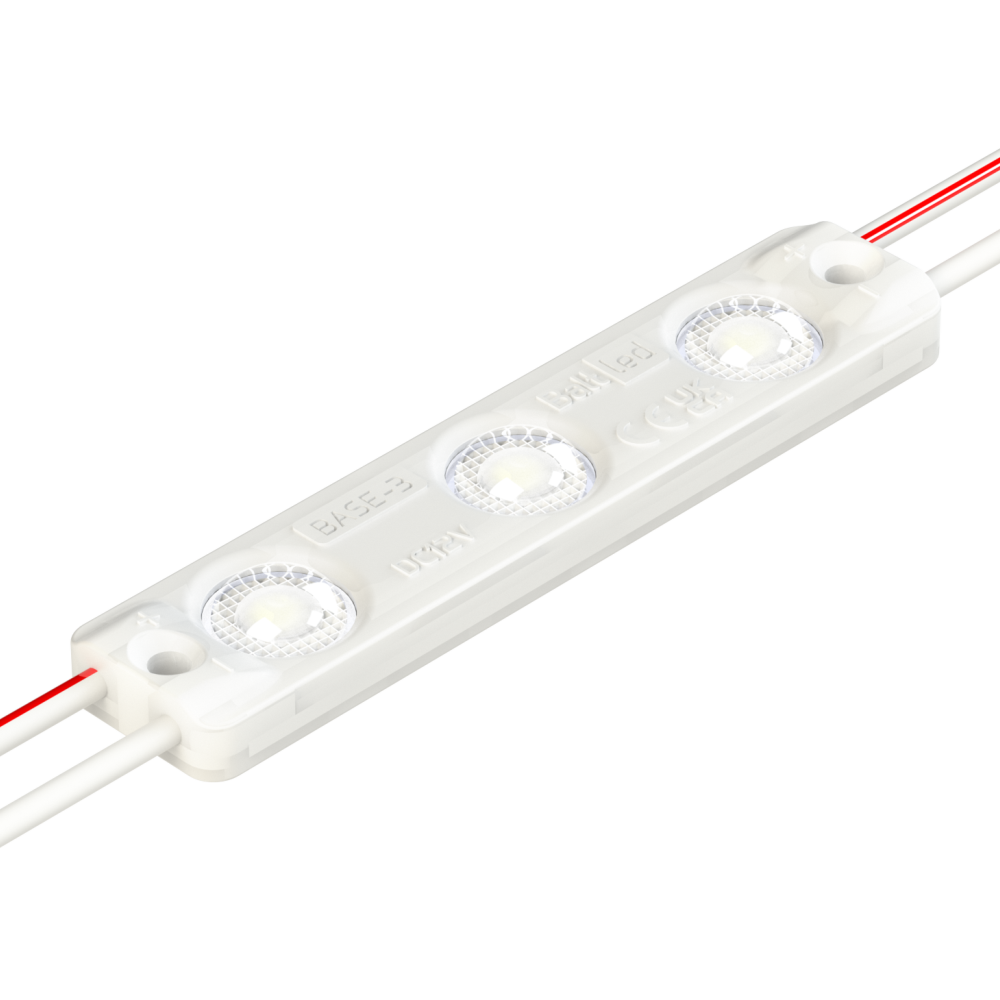

BASE 3
Product code: BMP-S3-O3UH160CW120-B3
LED module for letters and single-sided light boxes, 12V | 1.2W | 7000K-7500K | IP66
BASE series modules are designed to illuminate middle-depth letters and single-sided lightboxes. Because of their compact design, these modules can easily illuminate smaller letters ranging in depth from 80 to 150 mm. BASE modules have a lifetime of L70 70 000 h and a 5-year warranty. BASE - an excellent choice for projects requiring a cost-effective but high-quality solution.
Channel letters signs and light boxes
Recommended depth 80 – 150 mm
Compact design
Standard and high-efficacy versions
Efficacy up to 156 lm/W
IP66 protection class
5-year warranty
BASE series modules are designed to illuminate middle-depth letters and single-sided lightboxes. Because of their compact design, these modules can easily illuminate smaller letters ranging in depth from 80 to 150 mm. BASE modules have a lifetime of L70 70 000 h and a 5-year warranty. BASE - an excellent choice for projects requiring a cost-effective but high-quality solution.
Channel letters signs and light boxes
Recommended depth 80 – 150 mm
Compact design
Standard and high-efficacy versions
Efficacy up to 156 lm/W
IP66 protection class
5-year warranty
Specifications for BASE 3
| Binning, SDCM | 3 |
| CC distance, mm | 150 |
| Certification | CE, UKCA, RoHS and UL compliant |
| Colour/CCT | 7000 K - 7500 K |
| IP Class | IP66 |
| Lifetime | L70 70000 h |
| Lumen output, lm | 138 |
| Operating temperature | -20 °C ~ +50 °C |
| Power, W | 1.2 |
| Recommended depth | 80 - 150 mm |
| Storage relative humidity, % max | 60 |
| Storage temperature | -30 °C ~ +60 °C |
| Supply voltage, V | 12 DC |
| Application | Single-sided light boxes, Channel letters |
| Warranty, years | 5 |
