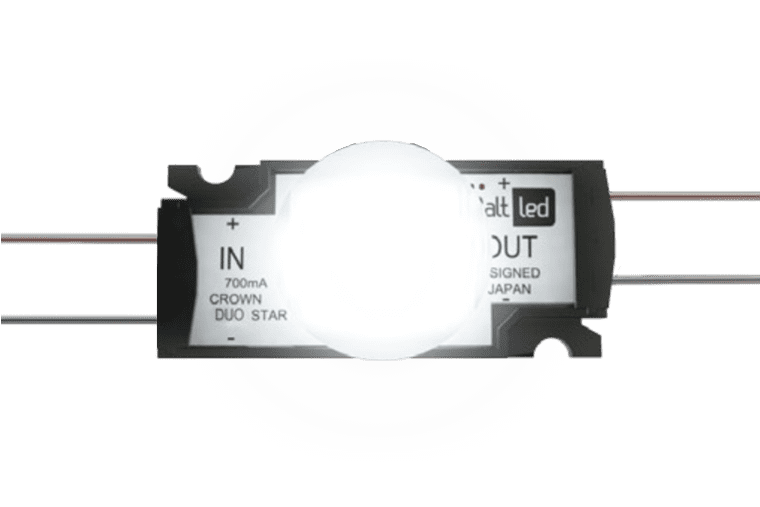

Crown Duo STAR
Product code: BMP-S52.4-O1EX0ELW1
LED module for double-sided light boxes, 700 mA | 2.1W |6500 | IP67
With Crown DUO STAR we enable cost-effective illumination of big depth double-sided lightboxes. Carbon fiber plastic housing and patented ventilation system allowed us to make lightweight modules with impressive ventilation. Therefore, high-power LED could be installed. Special acrylic elliptical lens grants wide-angle uniform light distribution pattern.
High brightness illumination of big depth double-sided light boxes
Recommended depth 140 – 200 mm
High efficiency over 124 lm/W
Special acrylic elliptical lens
Carbon fiber plastic housing
Patented ventilation system
IP67 protection class
5-year warranty
With Crown DUO STAR we enable cost-effective illumination of big depth double-sided lightboxes. Carbon fiber plastic housing and patented ventilation system allowed us to make lightweight modules with impressive ventilation. Therefore, high-power LED could be installed. Special acrylic elliptical lens grants wide-angle uniform light distribution pattern.
High brightness illumination of big depth double-sided light boxes
Recommended depth 140 – 200 mm
High efficiency over 124 lm/W
Special acrylic elliptical lens
Carbon fiber plastic housing
Patented ventilation system
IP67 protection class
5-year warranty
Specifications for Crown Duo STAR
| Binning, SDCM | 3 |
| CC distance, mm | 220 |
| Certification | CE and RoHS compliant |
| Colour/CCT | 6500 K |
| IP Class | IP67 |
| Lifetime | L70 60000 h |
| Lumen output, lm | 260 |
| Operating temperature | -35 °C ~ +50 °C |
| Power, W | 2.1 |
| Recommended depth | 140 - 200 mm |
| Storage relative humidity, % max | 60 |
| Storage temperature | +5 °C ~ +90 °C |
| Lumen output range, lm | 200-500 |
| Application | Single-sided light boxes, Channel letters |
| Warranty, years | 5 |
