Crown Opto X2
Product code: BMP-X2.2-O2UH160NW40NS

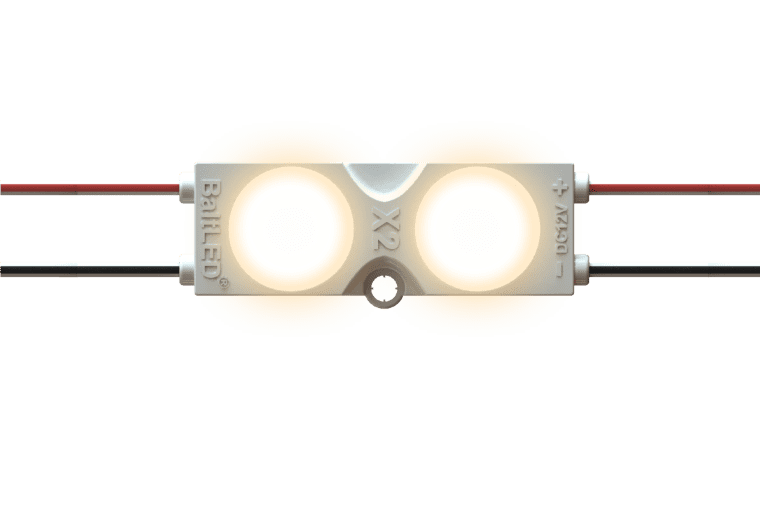

Crown Opto X2 LED module for letters and single-sided light boxes, 12V | 1.0W | 4000K | IP67 | Beam angle 160° | Center to center distance 230mm | 50 pcs per chain
Crown Opto X2 modules are designed to illuminate channel letters and single-sided lightboxes with depths ranging from 100 to 160 mm. Powered by Philips Lumileds LEDs, they show extreme endurance at harsh working conditions (IP67) and have a 7-year warranty with L70 for 80,000 hours.
Channel letter signs and single-sided lightboxes
Recommended depth 100 – 160 mm
Powered by Philips Lumileds LEDs
CRI >83
Extreme environment and conditions housing
Easy and fast installation cables
Made in Europe
IP67 protection class
7-year warranty
Crown Opto X2 modules are designed to illuminate channel letters and single-sided lightboxes with depths ranging from 100 to 160 mm. Powered by Philips Lumileds LEDs, they show extreme endurance at harsh working conditions (IP67) and have a 7-year warranty with L70 for 80,000 hours.
Channel letter signs and single-sided lightboxes
Recommended depth 100 – 160 mm
Powered by Philips Lumileds LEDs
CRI >83
Extreme environment and conditions housing
Easy and fast installation cables
Made in Europe
IP67 protection class
7-year warranty
Specifications for Crown Opto X2
| Binning, SDCM | 3 |
| CC distance, mm | 230 |
| Certification | CE and RoHS compliant |
| Colour/CCT | 4000 K |
| IP Class | IP67 |
| Lifetime | L70 80000 h |
| Lumen output, lm | 102 |
| Operating temperature | -40 °C ~ +60 °C |
| Power, W | 1 |
| Recommended depth | 100 - 160 mm |
| Storage relative humidity, % max | 60 |
| Storage temperature | +5 °C ~ +35 °C |
| Supply voltage, V | 12 DC |
| Lumen output range, lm | 100-200 |
| Application | Single-sided light boxes, Channel letters, Stretch ceilings |
| Warranty, years | 7 |
